AC-211-1

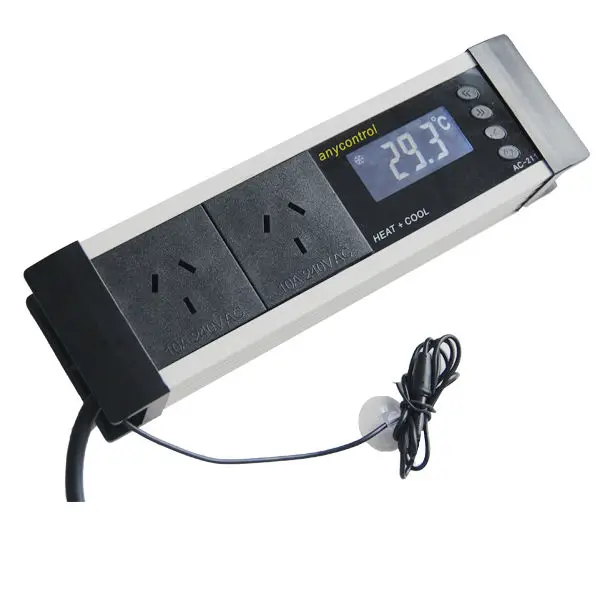

LCD Pet Animal Aquarium Aquarium Temperature Controller Thermostat


Features:



  • LCD blue tape crystal display
  • Can set differential of refrigeration and heating separately
  • Automatically convert between refrigeration and heating
  • Divided design
  • Backlit auto shut down without operation for 10 minutes



Parameters:
  1. Temperature measuring range: -40~100°C
  2. Temperature controlling range: 16~40°C
  3. Resolution: 0.1°C
  4. Accuracy: ±1°C
  5. Power: 220VAC±15%,50/60HZ(Optional: 110VAC)
  6. Input: 1 NTC sensor(waterproof)
  7. Sensor wire: approx. 1m (standard)
  8. Output: two relays output (Relay capacity: 5A or 10A optional)
  9. Plug and power strip: AU standard(Optional: EU, USA, UK); On the power strip, Ι means heating, ΙΙ means refrigeration.
  10. Backlit auto shut down without operation for 10 minute.
  11. Consumption: ≤3 w
  12. Ambient requirements: temperature: -10~60°C; humidity: 20~85% (No condensate)
  13. Net weight: approx. 400g
  14. Package weight: approx. 500g



Package Included:



  • 1 x thermostat(power strip included)
  • 1 x user manual



Indicator light Status Description:
ON: Refrigeration is in working state; FLASH: Compressor delay; OFF: Not working.
ON: Heating is in working state; OFF: Not working.
When in setting mode, switch to menu of refrigeration differential,
flash; switch to menu of heating differentia, flash.




Buttons Operation Description:

: Save; : Up; : Down; : Set



Functions Menu:

TC-300Functions Menu

The Fault Code Table:

TC-300The Fault Code Table



Friedly Reminder:

  • We can provide customized service for all of our products with reasonable price.



Applications:

1. Refrigeration industry(freezers, refrigerators, , Cold stores, cold chain, iceboxes, cooling towers, water coolers, oil coolers, cold water chillers, water chilling units etc.)

2. HVAC industry (Heating Ventilation Air Conditioning)

3. Pet industrial: Aquariums, fish tanks, terrariums, seafood machines, Vivariums, Paludariums, Incubators etc.

4. Medical thermostatic equipment (for blood, drugs, Pharmaceutical etc.)

5. Food processing (Brewing, Abattoirs etc.), Food Wholesale, Food Retail (Hypermarkets, Supermarkets, Convenience Stores, Food Shops, Charcuteries, Delicatessens etc.)

6. Solar water-heating system central controller

7. Sauna room, foot bath, foot sauna, foot massager etc.

8. Wine production, wine cabinet, display cabinet etc.

9. Catering (Hotels, Restaurants, etc.)

10. Agriculture

11. Automobile

12. Photography

13. Process control

14. Laboratory, Chemical

15. Greenhouses, cultivating-houses

16. Ice-skating rinks

17. Energy management

18. Other industries need temperature measuring and controlling
